Karma Ergo 3 Crash Tested Lightweight Folding Self Propell Wheelchair

£549.99 Ex. VAT, £659.99 Inc. Vat

The Karma Ergo Series combines ergonomic design with lightweight mobility to provide natural support from head to lower back, making it easier to stay upright and engage socially with comfort. Featuring the patented Ergo Back and the trusted S-Ergo Seat, the Ergo 3 offers a new level of seating comfort where form and function meet.

£0.00
£0.00
  • Options Price: £0.00
  • Product Price: £549.99
  • Total: £0.00
Super Logo
Pay by bank app with Super

Description

Advanced Ergo Seating System

The Ergo Seating System is designed for seniors who may struggle with upper body control, often leading to slouched posture or a downward-facing head.Ergo 3’s scientifically optimized seating angles help:

  • Promote a stable, healthy posture
  • Alleviate chronic sitting discomfort
  • Enhance field of vision
  • Improve social interactions

Relaxed Sitting, Healthy Living

Patented S-Ergo Back System

Karma’s innovative S-Ergo Backrest enhances both comfort and stability, allowing users—especially those with reduced muscular endurance—to maintain proper, healthy posture with ease.

Karma’s Ergo Series lightweight wheelchairs include a set of adjustable S-Ergo Back System Insert that provide direct lumbar support and maximize comfort.

Action-Highlighted Design

Designed with both users and caregivers in mind, all movable parts are highlighted in high-visibility orange for easy identification and operation.

  • Push & Pull Brake System: Just push the attendant brake to park the chair, and pull to unlock. Ideal for caregivers who can’t continuously bend over to park the wheelchair
  • Flip-Back Armrests: Makes it easy to get on and off the wheelchair or roll closer to a table or desk.
  • Detachable Swing-Away Footrests: Allows for easy transfer, on and off the wheelchair and detaches with no tools required.

Multi-Functional Side Guards

Discreet, easily accessible pockets are elegantly integrated into the inner sides of the side guards for added convenience, while the outer sides feature reflective accents to enhance visibility and safety outdoors.

Lightweight Innovation

Despite its many innovative features, Ergo 3 is one of the lightest wheelchairs on the market, with a total weight of just 11.9 kg (about 26 pounds) in its base configuration.

Optional Patented Ergo Anti-Tippers

Quick-Release to Overcome Curbs in ONE Single Step

Modern Look

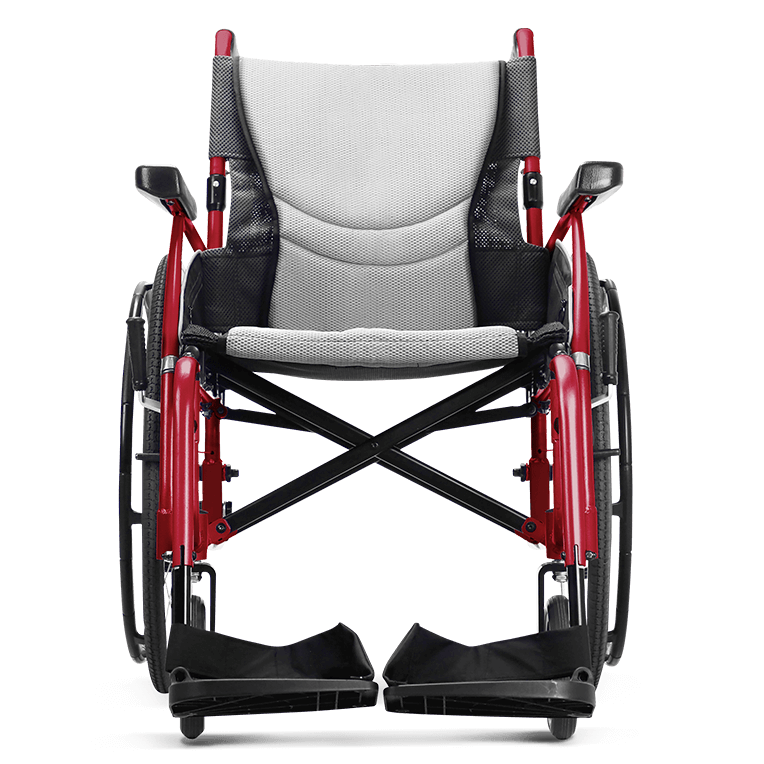

When it comes to the style, you can mix and match the frame color ( black and pearl) with the below upholstery. Rose Red only combined with Gray or Dark Gray Upholstery.

Technical Specification:

Product Model Ergo 3
Nominal seat width (mm/in)* 410 / 16 460 / 18 510 / 20 410 / 16 460 / 18 510 / 20 410 / 16 460 / 18 510 / 20
Nominal seat depth (mm/in)** 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17 435 / 17
Front caster / Rear wheel size (in) 6 / 14
7 / 14
6 / 14
7 / 14
6 / 14
7 / 14
6 / 20
7 / 20
6 / 20
7 / 20
6 / 20
7 / 20
7 / 24 7 / 24 7 / 24
Backrest height (mm) 435 435 435 435 435 435 435 435 435
Headrest height above seat (mm) N/A N/A N/A N/A N/A N/A N/A N/A N/A
Armrest to seat distance (mm) 220 220 220 220 220 220 220 220 220
Front location of armrest structure (mm) 0
350
0
350
0
350
0
350
0
350
0
350
0
350
0
350
0
350
Seat surface height at front edge (mm) 435
485
435
485
435
485
435
485
435
485
435
485
485 485 485
Footrest to seat distance (mm) 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460 385 – 460
Effective seat width (mm) 420 470 520 420 470 520 420 470 520
Effective seat depth (mm) 435 435 435 435 435 435 435 435 435
Seat plane angle (X°) 6 6 6 6 6 6 6 6 6
Backrest angle (X°) 20 20 20 20 20 20 20 20 20
Seat to backrest angle (X°) 104 104 104 104 104 104 104 104 104
Leg to seat angle (X°) 105 105 105 105 105 105 105 105 105
Overall length with legrest (mm) 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050 1025 – 1050
Overall width (mm) 575 625 675 595 645 695 595 645 695
Overall height (mm) 860
910
860
910
860
910
860
910
860
910
860
910
860
910
860
910
860
910
Folded length (mm) 770 (Q14)***
770 (F14)****
770 (Q14)
770 (F14)
770 (Q14)
770 (F14)
770 (Q20)
780 (F20)
770 (Q20)
780 (F20)
770 (Q20)
780 (F20)
770 (Q24)
820 (F24)
770 (Q24)
820 (F24)
770 (Q24)
820 (F24)
Folded width (mm) 245 (Q14)
285 (F14)
245 (Q14)
285 (F14)
245 (Q14)
285 (F14)
245 (Q20)
310 (F20)
245 (Q20)
310 (F20)
245 (Q20)
310 (F20)
245 (Q24)
310 (F24)
245 (Q24)
310 (F24)
245 (Q24)
310 (F24)
Folded height (mm) 660 (Q14)
700 (F14)
700 (Q14)
735 (F14)
740 (Q14)
780 (F14)
660 (Q20)
700 (F20)
700 (Q20)
735 (F20)
740 (Q20)
780 (F20)
660 (Q24)
700 (F24)
700 (Q24)
735 (F24)
740 (Q24)
780 (F24)
Total mass (kg) 11.9
12.3
12.2
12.6
12.5
12.9
13.1
13.3
13.4
13.6
13.7
13.9
13.8 14.1 14.4
Mass of the heaviest part (kg) 8.0
8.4
(Q14)
8.3
8.7
(Q14)
8.6
9.0
(Q14)
8.2
8.4
(Q20)
8.5
8.7
(Q20)
8.8
9.0
(Q20)
8.4
(Q24)
8.7
(Q24)
9.0
(Q24)
10.1
10.5
(F14)
10.4
10.8
(F14)
10.7
11.1
(F14)
11.3
11.5
(F20)
11.6
11.8
(F20)
11.9
12.1
(F20)
12.0
(F24)
12.3
(F24)
12.6
(F24)
Maximum user weight (kg)***** 115 115 115 115 / 125 115 / 125 115 / 125 115 / 125 115 / 125 115 / 125
Minimum turning radius (mm) 895 900 910 895 900 910 895 900 910
Minimum turning radius without user (mm) 745 750 760 745 750 760 745 750 760
Pivot width (mm) 1115 1135 1155 1115 1135 1155 1115 1135 1155
Static stability downhill (X°) 14 14 14 14 14 14 14 14 14
Static stability uphill (X°) 14 14 14 14 14 14 14 14 14
Static stability sideways (X°) 14 14 14 14 14 14 14 14 14
Handrim diameter (mm) N/A N/A N/A 435 435 435 520 520 520
Horizontal location of axle (mm) 45 45 45 45 45 45 45 45 45
