Solid and durable aluminium wheelchair ramp with black non-slip grip surface. Choose from 4ft, 5ft, 6ft, 8ft and 10ft lengths. This disabled access ramp/suitcase ramp folds in half, both it’s length and width – from 6ft upwards the ramps split in 2, these are SPLIT ramps and make the ramps much easier to put in place and use.
Wheelchair Ramps Multi-fold 4ft – 10ft
£180.00 Ex. VAT, £216.00 Inc. Vat
Description

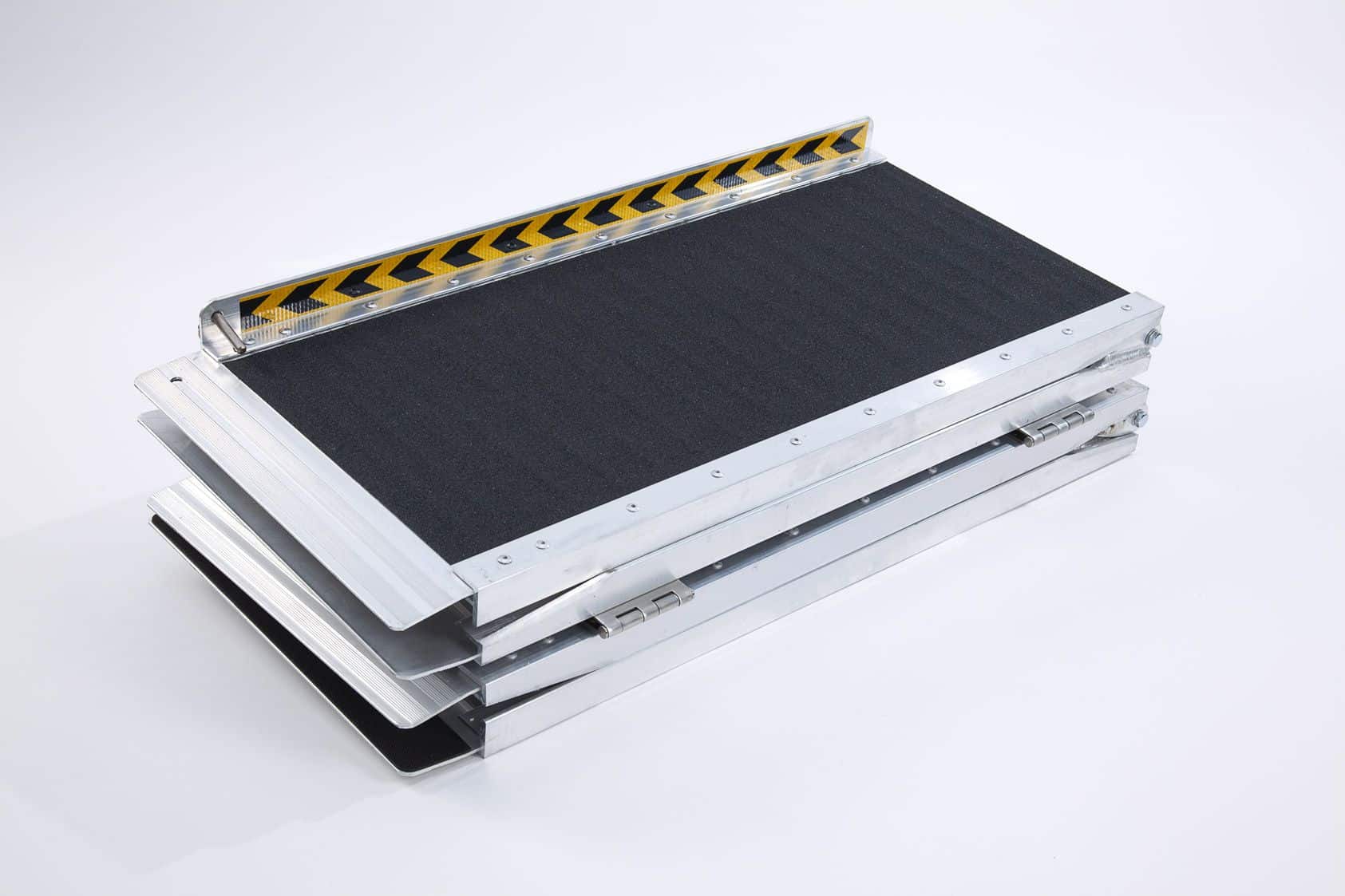

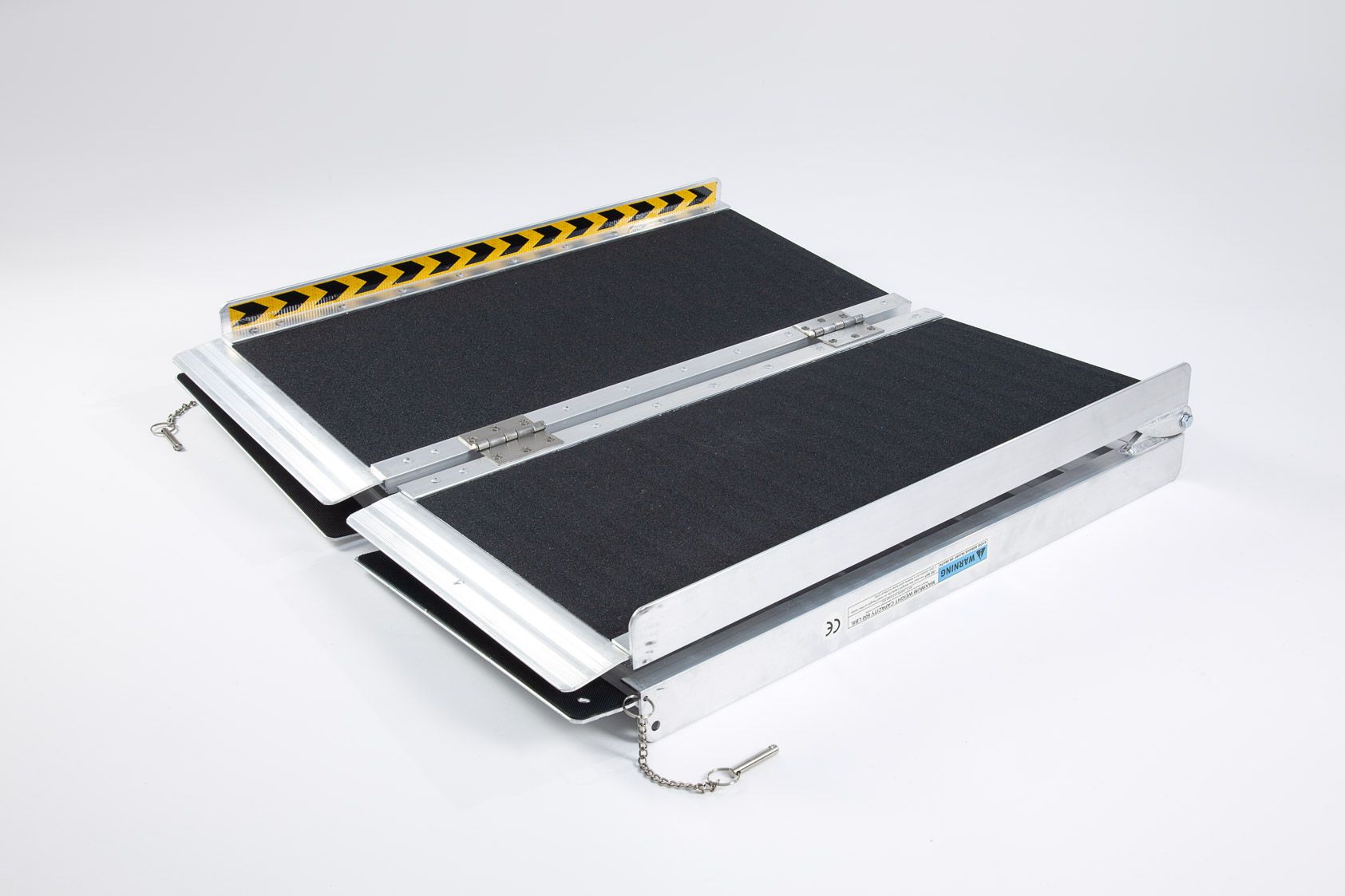

- Folds lengthways and widthways for compact storage and transportation, the 6ft, 8ft and 10ft suitcase ramps split in two. Clip shut when stored

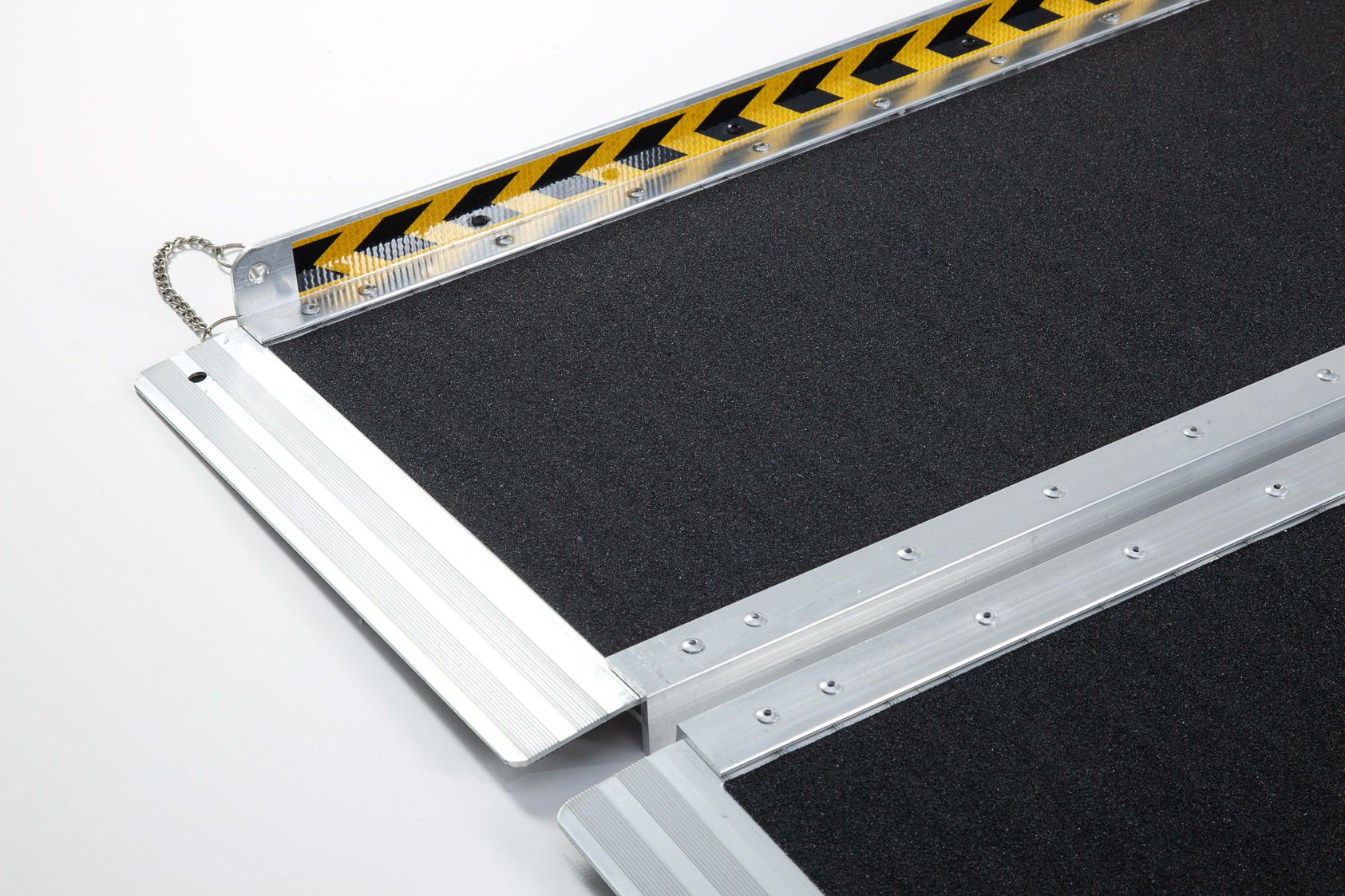

- Black anti-slip grip surface for optimum grip during use
- 275kg capacity, suitable for manual wheelchairs, mobility scooters, walkers and electric wheelchairs
- Safety edges to prevent users from rolling off of the access ramp
- High visibility black and yellow safety stripes on the internal edge of the ramp to reduce trip hazards
- Carry handle built onto the side of the portable wheelchair ramp to allow the ramp to easily be moved and transported
- No installation required simply rest the ramp onto the step, kerb and doorway and start using
- Improved clearance due to the slightly curved design
Product Specification:
4ft
| Length (ft) | 4 |
|---|---|
| Length (mm) | 1219 |
| Internal Width (mm) | 720 |
| Total Width (mm) | 730 |
| Max Load Height (mm) | 203 (occupied) 365 (unoccupied) 470 (dog ramp) |
| Weight (kg) | 10.3 |
| Capacity (kg) | 270 |
| Stored Dimensions (mm) | 620 x 360 x 200 |
5ft
| Length (ft) | 5 |
|---|---|
| Length (mm) | 1524 |
| Internal Width (mm) | 720 |
| Total Width (mm) | 730 |
| Max Load Height (mm) | 250 (occupied) 365 (unoccupied) 580 (dog ramp) |
| Weight (kg) | 12.6 |
| Capacity (kg) | 270 |
| Stored Dimensions (mm) | 760 x 360 x 200 |
6ft
| Length (ft) | 6 |
|---|---|
| Length (mm) | 1830 |
| Internal Width (mm) | 720 |
| Total Width (mm) | 730 |
| Max Load Height (mm) | 305 (occupied) 540 (unoccupied) 700 (dog ramp) |
| Weight (kg) | 16.7 |
| Capacity (kg) | 270 |
| Stored Dimensions (mm) | 930 x 360 x 200 per half |
8ft
| Length (ft) | 8 |
|---|---|
| Length (mm) | 2440 |
| Internal Width (mm) | 720 |
| Total Width (mm) | 730 |
| Max Load Height (mm) | 405 (occupied) 720 (unoccupied) 930 (dog ramp) |
| Weight (kg) | 21.5 |
| Capacity (kg) | 270 |
| Stored Dimensions (mm) | 1230 x 360 x 200 per half |
10ft
| Length (ft) | 10 |
|---|---|
| Length (mm) | 3048 |
| Internal Width (mm) | 720 |
| Total Width (mm) | 730 |
| Max Load Height (mm) | 505 (occupied) 910 (unoccupied) |
| Weight (kg) | 27.5 |
| Capacity (kg) | 270 |
| Stored Dimensions (mm) | 1550 x 360 x 200 per half |
