Dual Purpose Folding Telescopic Wheelchair & Bridge Ramps Combi 7ft – 10ft

£255.00 Ex. VAT, £306.00 Inc. Vat

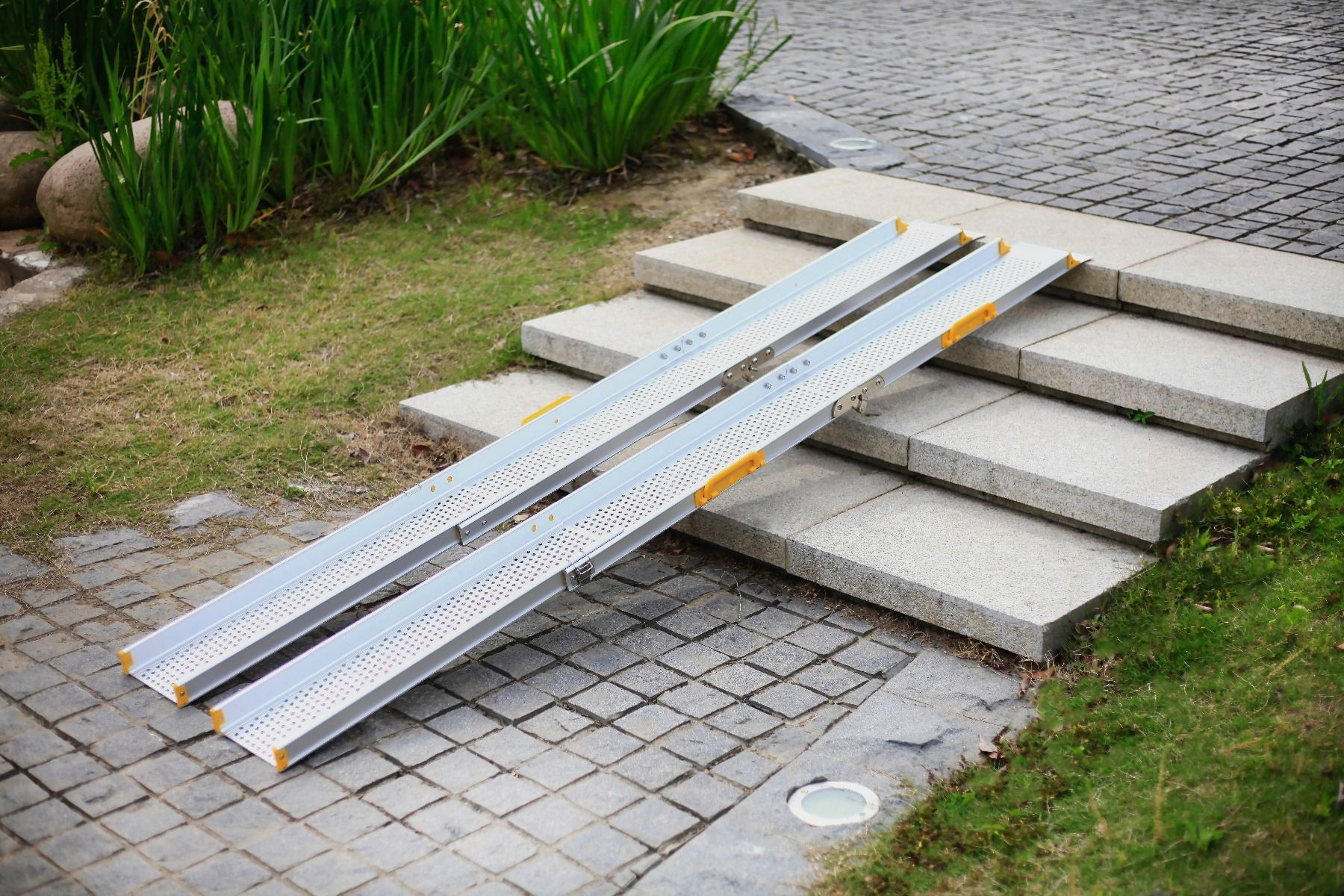

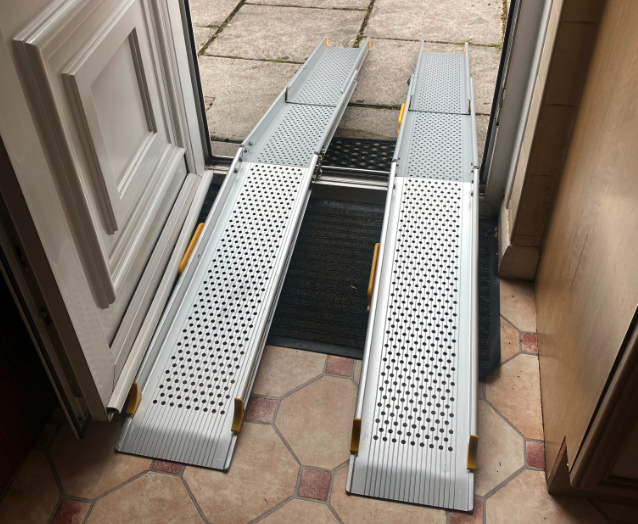

The Ramp People’s folding & telescopic wheelchair ramps provide unlimited adjustability and are easy to store. The lightweight wheelchair ramps can be used as standard channel ramps by simply resting these on the step. In addition, these ramps incorporate a folding feature to allow these to be used to bridge thresholds to allow manual wheelchairs to overcome doorways.

Please note, these ramps are NOT suitable for electric wheelchairs or scooters due to their low ground clearance.

£0.00
  • Options Price: £0.00
  • Product Price: £255.00
  • Total: £0.00
Category:

Description

  • Maximum gradient = 1 in 6 although 1 in 8 is recommended
  • Available with or without carry bag
  • Quick and easy to set up, simply unfold and unslide the ramps and place them onto the step or threshold
  • Lightweight, aerospace design
  • Suitable for bridging thresholds with unequal levels on each side

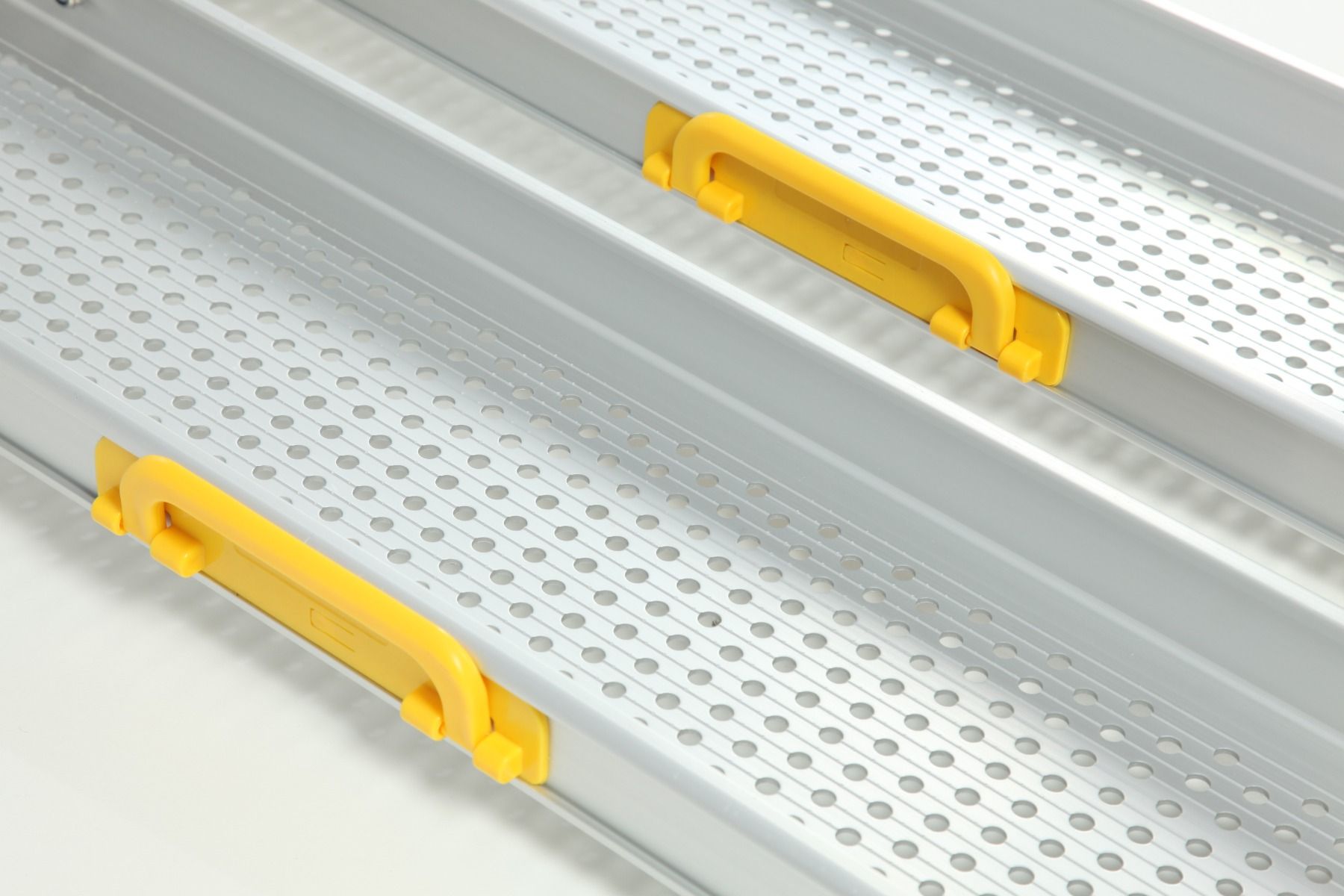

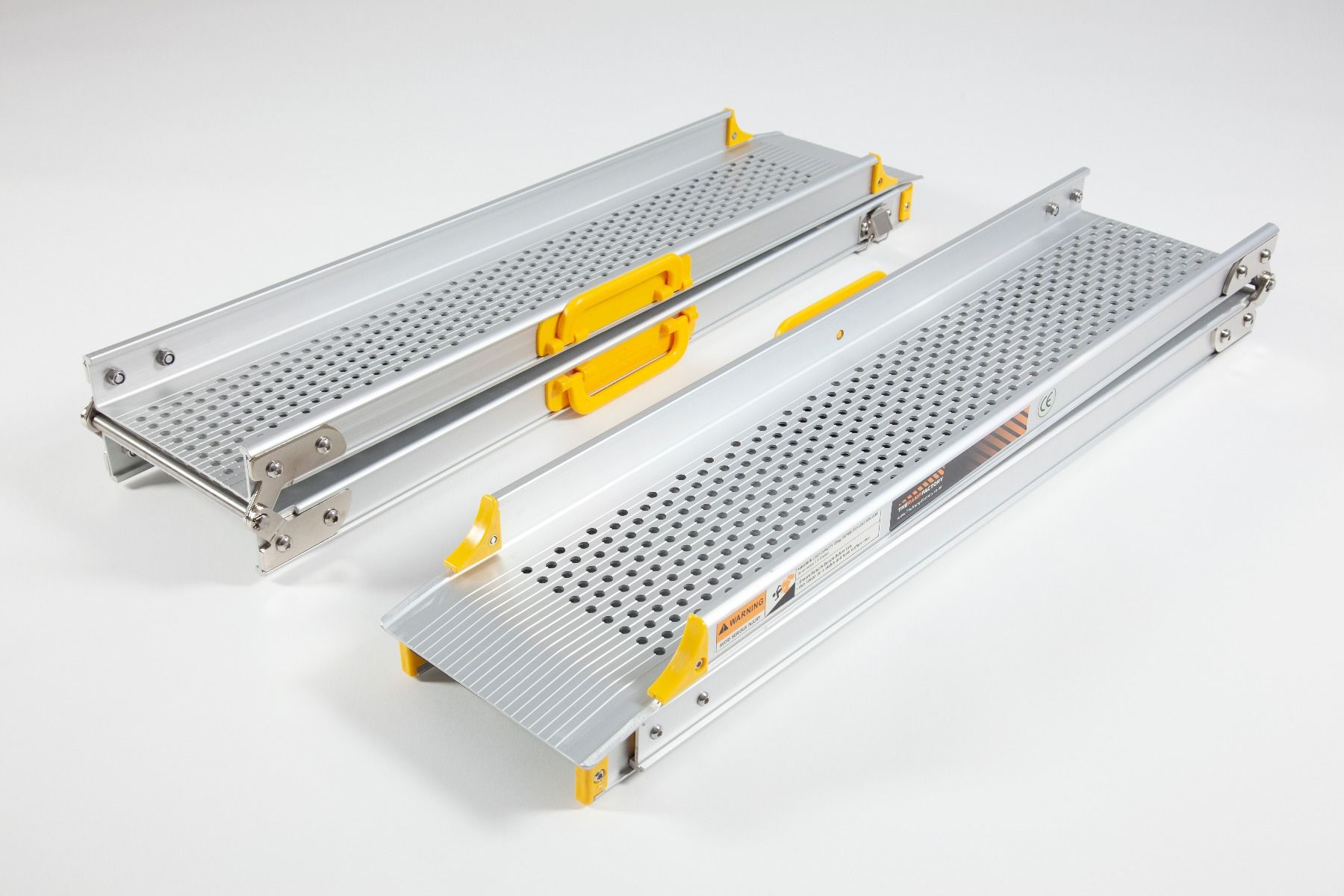

  • Provided with built on carry handles, and clips shut for easy and safe storage and transportation
  • Durable non-slip surface
  • Rest on connection, to fit just rest on and start loading
  • 45mm high walls, edges on each side of the ramp to prevent accidentally wheeling off
  • Clip to use the ramps at shorter lengths where required
  • Only suitable for manual wheelchairs
  • The 7ft main ramp is 4.2ft/1300mm, the threshold ramp length is 2.6ft/800mm
  • The 8ft main ramp length is 4.9ft/1500mm, the threshold ramp length is 3ft/900mm
  • The 10ft main ramp length is 6.2ft/1.9m, the threshold ramp length is 3.6ft / 1100mm
Capacity (kg) 275
Height (mm) 45
Length (ft) 7-10
Length (mm) 2133 – 3048
Max Load Height (mm) 355 – 505
Weight (kg) 13-19
Weight per Ramp (kg) 6.5-9.5
Width (mm) 210
One Year Warranty Yes
Easy to Fit Yes
Manual Wheelchair Yes
Not Mobility Scooter Friendly Yes

Product Specification:

7ft
Length (ft) 7
Length (mm) 2100
Internal Width (mm) 162
Total Width (mm) 210
Height (mm) 45
Max Load Height (mm) 355
Weight per Ramp (kg) 6.5
Weight Per Pair (kg) 13
Capacity (kg) 275
Stored Dimensions (mm) 870 x 240 x 200 per ramp
8ft
SKU TRP307-8
Length (ft) 8
Length (mm) 2438
Internal Width (mm) 162
Total Width (mm) 210
Height (mm) 45
Max Load Height (mm) 405
Weight per Ramp (kg) 7.5
Weight Per Pair (kg) 15
Capacity (kg) 275
Stored Dimensions (mm) 960 x 240 x 200 per ramp
10ft
Length (ft) 10
Length (mm) 3048
Internal Width (mm) 162
Total Width (mm) 210
Height (mm) 46
Max Load Height (mm) 505
Weight per Ramp (kg) 9.5
Weight Per Pair (kg) 19
Capacity (kg) 275
Stored Dimensions (mm) 1160 x 240 x 200 per ramp
