Stand up, Stand out.

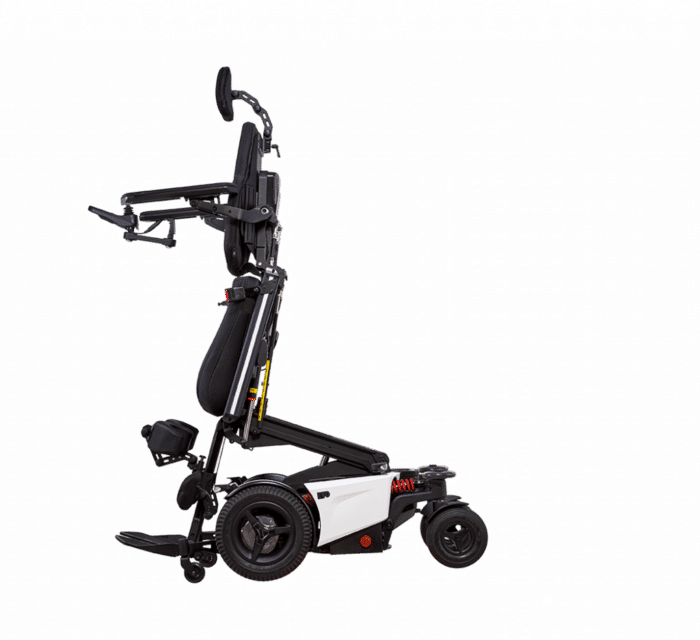

If living independently is the ultimate goal, being able to stand up is an important step. The EVO Altus (EVO-ALT) is specially designed to help those who have very limited body control to achieve this step. The chair provides not just one, but three different ways to stand up: sit-to-stand, recline-to-stand, and lie-to-stand. The standing modes along with other features are configurable to fit the user’s need and to help the user reach independence on wheels.
Effectively enhances blood circulation and preserves physical health. Reduces muscular fibrosis and arthrofibrosis. Enhances physical circulation by improving heart and lung functions and promotes gastrointestinal movement. Lowers the risk of heart disease and improves circulation, urinary health, bowel function, and bone density
Biomechanical Positioning
Because it is not always easy to adapt to a new living situation, the Evo Altus is designed with various biomechanic positioning functions to help the user with the transition. It includes power tilt, power recline, power elevating seat and power stand up. The seat will traverse with the body, thereby reducing the sheer force to a minimum and most importantly, keeping all the supports in the correct alignment with the body.
Compact yet Powerful
The EVO Altus has a low seat-to-floor height and a battery capacity up to 80 AH. The compact design and powerful battery put no restrictions on the seat positioning. This ensures easy access to the steering wheel when driving a car or van, expanding the transportation options.
Sit-to-Stand
This function allows the user to go from a sitting position to a standing position. This is the most natural way to stand up and does not take a lot of time and space. Users who have a normal range of joint motion as well as healthy blood circulation, will find this mode best suits their needs
45° lay-to-Stand
This function allows the user to go from a 45-degree recline to a standing position. This is useful for those who have a limited range of joint motion. Instead trying to sit up straight to stand up, the user can use the recline function and then go from a reclined position to a standing position.
Lay-to-Stand
This function allows the user to go from a supine position to a standing position. Standing from the supine position requires the least amount of body and joint movements. This function not only prevents lateral supports from being mispositioned but also gives users with intense postural hypotension the opportunity to stand like everyone else.
Excellent Outdoor Performance
The chair has three driving speed: 4/6/8mph. In conjunction with the chassis’ proven hydraulic independent suspension system, maximizes the comfort and quality of the ride.
Easy to Configure
Small adjustments can mean huge improvements for the user’s well-being. When developing the EVO Altus, the primary focus was improving the ease of adjustment and maintenance. For example, service technicians can extend the seat depth without adding any additional components, such as linkage bars.
User Friendly
With its front wheel drive and swing-away joystick bracket, the surroundings become much more accessible to the user.
R-Net Control
The R-Net-control system comes standard with the EVO Altus. Operate many electrical functions of the chair using the joystick. This system also serves as a platform for a wide variety of specialized steering controls such as chin control, head control and switch control. It even has the ability to operate infrared and Bluetooth devices using the joystick with R-Net controls. The things you can do with R-Net control are endless.
Crash Test Approved
The EVO Altus is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
Available Colour
Orange, White, Silver black
Specification
Product Name
EVO-ALT
EVO-ALT(ISO 7176)
Seat Width (mm)
420~520
425/475/525
Seat Depth (mm)
400~600
428~628
Front Seat Height (mm)
405~455
405~455
Backrest
Height (mm)
530/600/670
530/600/670
Armrest
Height (mm)
28~306
28~306
Legrest
Length (mm)
400~630
400~630
Power Funtions
power tilt 2~47°
power recline (-8)-80°
Power bio-mechanical legrest: (-4)-83°
power lift: 0-400mm
power tilt 2~47°
power recline (-8)-80°
Power bio-mechanical legrest: (-4)-83°
power lift: 0-400mm
