£2,495.00 Ex. VAT, £2,994.00 Inc. Vat
With a brand new look and thoughtful upgrades, the new Blazer is now offering an exceptionally narrow 580mm wheelbase and foldable backrest. It is more compact and agile than its previous model, while maintaining its range of configurations with Sling seat and Captain seat options.
The new Blazer is not only indoor friendly but also made for use outdoors. With its 2-wheel suspension and 9-inch front wheel, this new model guarantees a smooth drive in your everyday travel.
The new Blazer’s total width is just 580 mm, making it one of the most compact power chairs on the market. It is smooth and easy to navigate through doorways, into lifts, or around confined spaces.

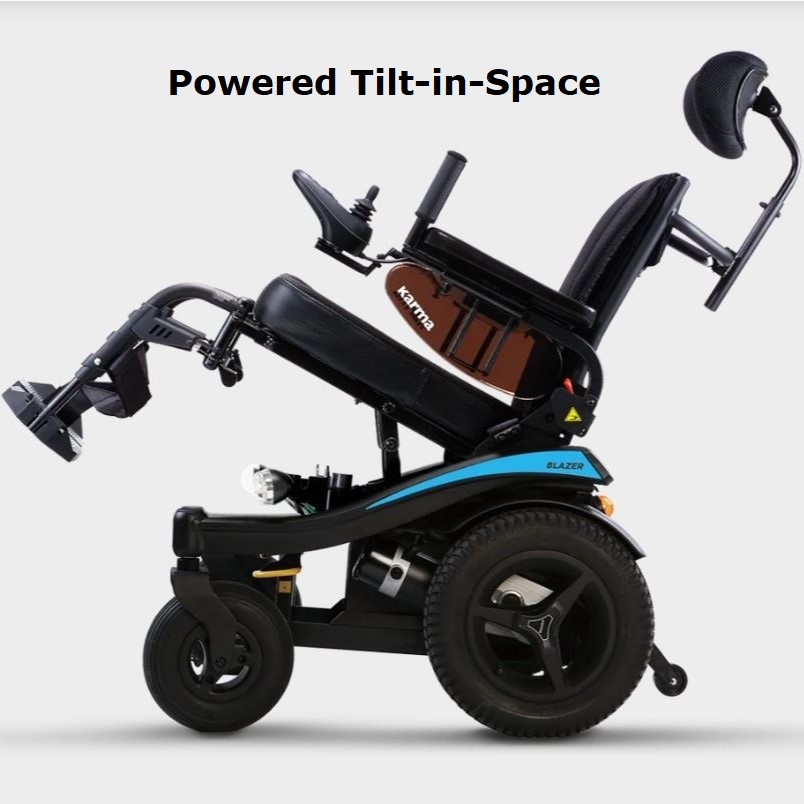

Blazer Sling not only offers 3 seat width options, it also provides 8° to 28° degree power tilt, which allows the users to easily change their position, thus shifting the pressure away from the hipbones and redistributing it over a larger surface area.
This feature helps reduce the risks of developing pressure ulcers and avoid back pain.
The backrest angle is adjustable at 100˚/105˚/110˚ with hand screw. The new Blazer backrest can be folded to the front with simple tools.
The seat depth can be adjusted from 420 to 500 mm.
The height and angle of the headrest are both adjustable. The headrest is curved ergonomically according to the shape of the neck.
The flip-back armrests and swing away footrests make it easy to get on and off the wheelchair or roll closer to a table. The armrest height is adjustable from 180 to 260 mm.
The detachable swing-away footrests allows for easy transfer, on and off the wheelchair and detaches with no tools required.
It is important for the wheelchair user to see as well as be seen at night. To improve safety, the Blazer can be equipped with LED headlights and taillights for better night-time visibility.
The new Blazer is approved for transportation in accordance with ISO 7176-19. This means it is suitable to be used as a seat in a motor vehicle for transportation.
Blue, Orange, White
| Product Model | KP-31.2 | ||
| Nominal seat width (mm/in)* | 420 / 17 | 475 / 19 | 505 / 20 |
| Nominal seat depth (mm/in)** | 425 ~ 5 00 17 ~ 20 |
425 ~ 500 17 ~ 20 |
425 ~ 500 17 ~ 20 |
| Front caster / Drive wheel size (in) | 9 / 14 | 9 / 14 | 9 / 14 |
| Backrest height without cushion (mm) | 530 | 530 | 530 |
| Backrest height with cushion (mm) | 460 | 460 | 460 |
| Headrest height above seat (mm) | N/A | N/A | N/A |
| Armrest to seat distance without cushion (mm) | 275 ~ 355 | 275 ~ 355 | 275 ~ 355 |
| Armrest to seat distance with cushion (mm) | 180 ~ 260 | 180 ~ 260 | 180 ~ 260 |
| Front location of armrest structure (mm) | 285 ~ 575 | 285 ~ 575 | 285 ~ 575 |
| Seat surface height at front edge without cushion (mm) |
445 | 445 | 445 |
| Seat surface height at front edge with cushion (mm) |
540 | 540 | 540 |
| Footrest to seat distance without cushion (mm) |
275 ~ 360 | 275 ~ 360 | 275 ~ 360 |
| Footrest to seat distance with cushion (mm) | 375 ~ 460 | 375 ~ 460 | 375 ~ 460 |
| Effective seat width (mm) | 420 | 475 | 505 |
| Effective seat depth (mm) | 380 ~ 540 | 380 ~ 540 | 380 ~ 540 |
| Seat plane angle (X°) | 8 | 8 | 8 |
| Backrest angle (X°) | 10 / 15 / 20 | 10 / 15 / 20 | 10 / 15 / 20 |
| Seat to backrest angle (X°) | 92 / 97 / 102 | 92 / 97 / 102 | 92 / 97 / 102 |
| Leg to seat angle (X°) | 105 | 105 | 105 |
| Overall length with legrest (mm) | 1090 ~ 1160 | 1090 ~ 1160 | 1090 ~ 1160 |
| Overall width (mm) | 580 | 600 | 635 |
| Overall height (mm) | 975 | 975 | 975 |
| Folded length (mm) | 830 | 830 | 830 |
| Folded width (mm) | 580 | 600 | 635 |
| Folded height (mm) | 815 | 815 | 815 |
| Total mass (kg) | 98.5 | 98.5 | 98.5 |
| Total mass without batteries (kg) | 67.2 | 67.2 | 67.2 |
| Mass of the heaviest part (kg) | 63.0 | 63.0 | 63.0 |
| Maximum user weight (kg) | 136 | 136 | 136 |
| Motor power (W) | 350 | 350 | 350 |
| Battery capacity (Ah) | 50*2 | 50*2 | 50*2 |
| Charger output current (A) | 6 | 6 | 6 |
| Drive range (km)*** | 26 | 26 | 26 |
| Battery Compartment (L x W x H) (mm) | 505 x 175 x 200 | 505 x 175 x 200 | 505 x 175 x 200 |
| Maximum speed forward (km) | 10 | 10 | 10 |
| Minimum braking distance from max speed (mm) |
2100 | 2100 | 2100 |
| Obstacle climbing (mm) | 50 | 50 | 50 |
| Ground clearance (mm) | 73 | 73 | 73 |
| Minimum turning radius (mm) | 1020 | 1020 | 1020 |
| Minimum turning radius without user (mm) | 825 | 825 | 825 |
| Reversing width (mm) | 1250 | 1250 | 1250 |
| Static stability downhill (X°) | 9 | 9 | 9 |
| Static stability uphill (X°) | 9 | 9 | 9 |
| Static stability sideways (X°) | 9 | 9 | 9 |
| Dynamic stability uphill (X°) | 6 | 6 | 6 |
| Ability to climb rated slope (X°)*** | 12 | 12 | 12 |
| Product Model | KP-31.2T | ||
| Nominal seat width (mm/in)* | 420 / 17 | 475 / 19 | 505 / 20 |
| Nominal seat depth (mm/in)** | 425 ~ 500 17 ~ 20 |
425 ~ 500 17 ~ 20 |
425 ~ 500 17 ~ 20 |
| Front caster / Drive wheel size (in) | 9 / 14 | 9 / 14 | 9 / 14 |
| Backrest height without cushion (mm) | 530 | 530 | 530 |
| Backrest height with cushion (mm) | 460 | 460 | 460 |
| Headrest height above seat (mm) | 570 ~ 695 | 570 ~ 695 | 570 ~ 695 |
| Armrest to seat distance without cushion (mm) | 275 ~ 355 | 275 ~ 355 | 275 ~ 355 |
| Armrest to seat distance with cushion (mm) | 180 ~ 260 | 180 ~ 260 | 180 ~ 260 |
| Front location of armrest structure (mm) | 285 ~ 575 | 285 ~ 575 | 285 ~ 575 |
| Seat surface height at front edge without cushion (mm) |
445 | 445 | 445 |
| Seat surface height at front edge with cushion (mm) |
540 | 540 | 540 |
| Footrest to seat distance without cushion (mm) |
275 ~ 360 | 275 ~ 360 | 275 ~ 360 |
| Footrest to seat distance with cushion (mm) | 375 ~ 460 | 375 ~ 460 | 375 ~ 460 |
| Effective seat width (mm) | 420 | 475 | 505 |
| Effective seat depth (mm) | 380 ~ 540 | 380 ~ 540 | 380 ~ 540 |
| Seat plane angle (X°) | 8 ~ 28 | 8 ~ 28 | 8 ~ 28 |
| Backrest angle (X°) | 0 ~ 31 | 0 ~ 31 | 0 ~ 31 |
| Seat to backrest angle (X°) | 0 ~ 114 | 0 ~ 114 | 0 ~ 114 |
| Leg to seat angle (X°) | 105 | 105 | 105 |
| Overall length with legrest (mm) | 1090 ~ 1160 | 1090 ~ 1160 | 1090 ~ 1160 |
| Overall width (mm) | 580 | 600 | 635 |
| Overall height (mm) | 1165 | 1165 | 1165 |
| Folded length (mm) | 830 | 830 | 830 |
| Folded width (mm) | 580 | 600 | 635 |
| Folded height (mm) | 815 | 815 | 815 |
| Total mass (kg) | 103 | 103 | 103 |
| Total mass without batteries (kg) | 72.4 | 72.4 | 72.4 |
| Mass of the heaviest part (kg) | 66.5 | 66.5 | 66.5 |
| Maximum user weight (kg) | 136 | 136 | 136 |
| Motor power (W) | 350 | 350 | 350 |
| Battery capacity (Ah) | 50*2 | 50*2 | 50*2 |
| Charger output current (A) | 6 | 6 | 6 |
| Drive range (km)*** | 26 | 26 | 26 |
| Battery Compartment (L x W x H) (mm) | 505 x 175 x 200 | 505 x 175 x 200 | 505 x 175 x 200 |
| Maximum speed forward (km) | 10 | 10 | 10 |
| Minimum braking distance from max speed (mm) |
2100 | 2100 | 2100 |
| Obstacle climbing (mm) | 50 | 50 | 50 |
| Ground clearance (mm) | 73 | 73 | 73 |
| Minimum turning radius (mm) | 1020 | 1020 | 1020 |
| Minimum turning radius without user (mm) | 825 | 825 | 825 |
| Reversing width (mm) | 1250 | 1250 | 1250 |
| Static stability downhill (X°) | 9 | 9 | 9 |
| Static stability uphill (X°) | 9 | 9 | 9 |
| Static stability sideways (X°) | 9 | 9 | 9 |
| Dynamic stability uphill (X°) | 6 | 6 | 6 |
| Ability to climb rated slope (X°)*** | 12 | 12 | 12 |
