Trio Wheelchair Home Lift

£13,500.00 Ex. VAT, £16,200.00 Inc. Vat

A home wheelchair lift

The Stiltz Trio wheelchair lift range helps wheelchair users live independently at home.

Our innovative three-person lift is an easy, adaptable solution to overcome accessibility barriers and make moving seamlessly between floors possible for everyone.

The lifts in our Trio range can fit a standard-sized wheelchair or up to three passengers, making them ideal for users with walking frames or disabilities. While many through-floor lifts can be bulky and take up lots of space, our Trio Home Lifts are compact and designed with a sleek and contemporary appearance to fit seamlessly into your home.

All of our Stiltz Home Lifts are freestanding and don’t need to be fixed to a wall, and simply plug straight into a standard 13-amp power socket in your home. Thanks to their small footprint, our wheelchair lifts can be fitted almost anywhere in the home.

Our Trio Home Lifts have been fitted in hundreds of homes across the UK, making long-term accessible living possible for customers across the country.

Categories: ,

Description

About Trio Home Lifts

If you’re looking to future-proof your home or improve the quality of your life by making it easier to move between floors, the Trio range offers an ideal solution.

Our lifts make travel to every corner of your home both effortless and safe. Thoughtful features like a gently angled ramp, wider entry points, and remote control operation were designed with usability in mind, giving you a smooth home lift experience regardless of your ability. An automatic door is also available as an extra add-on for greater ease of use.

Trio Home Lifts have a large interior cab space and a heavier weight load, which means the lift can carry an extra person compared to our Duo Home Lift Range. The Trio range also has an increased maximum weight capacity of 250kg.

Along with carrying up to three passengers or a wheelchair, our through-floor lifts can also easily transport luggage and carry bigger items between floors to make at-home living that bit easier.

Choose from two models within our Trio range:

  • The Trio+
  • The Trio ThruCar

Like all Stiltz Home Lifts, our products are powered by a quiet electric motor drive system instead of noisy hydraulics or vacuum systems. Thanks to our unique dual rail technology, the lift doesn’t need load-bearing walls and has a self-supporting structure. This makes Stiltz Trio Lifts the only wheelchair lift on the market that can be fitted virtually anywhere in the home.

Assembled in the UK, the Stiltz Trio Lifts can be installed in just one day with minimal building work and disruption. From lounge to bedroom or hallway to study, the wheelchair lift requires a remarkably small space and comes in an elegant design in subtle colourways to perfectly complement your existing décor.

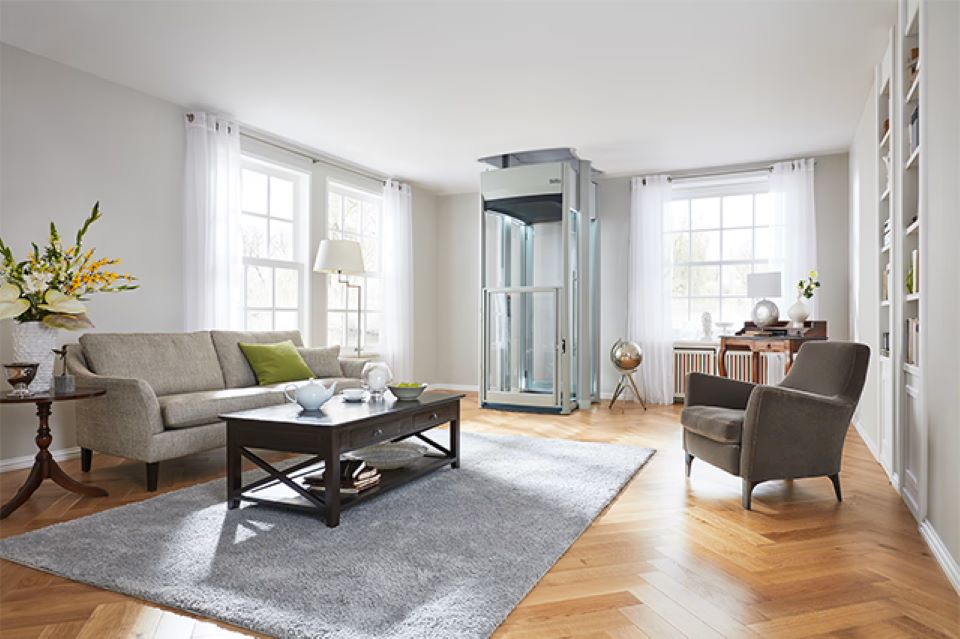

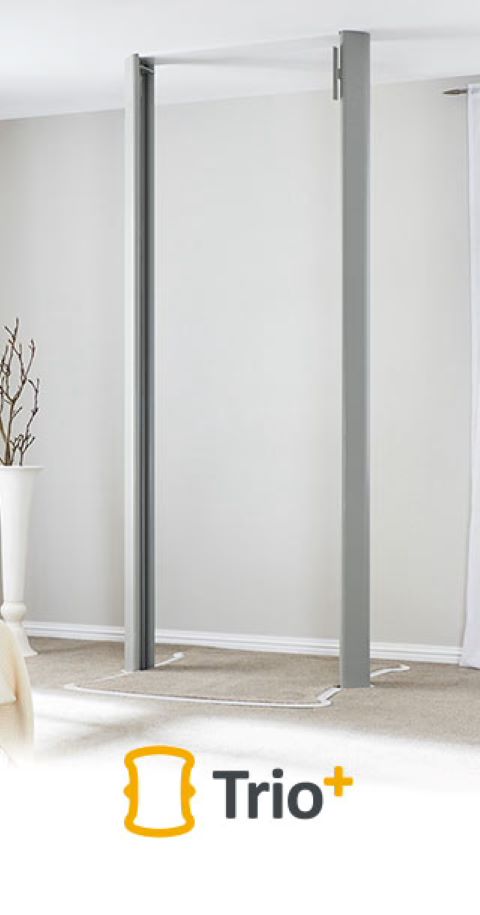

The Trio+

  • The Stiltz Trio+ is a spacious, luxurious, wheelchair-accessible home lift designed to carry a full-sized wheelchair or three people.
  • With its clear sides and slightly wider entrance and exit points, the Trio+ is a stylish addition to any home. The self-supporting structure and compact design mean no extra machinery or wires clutter your space, making it an elegant and practical choice.
  • Move between floors with comfort and convenience with the Trio+ through-floor lift.

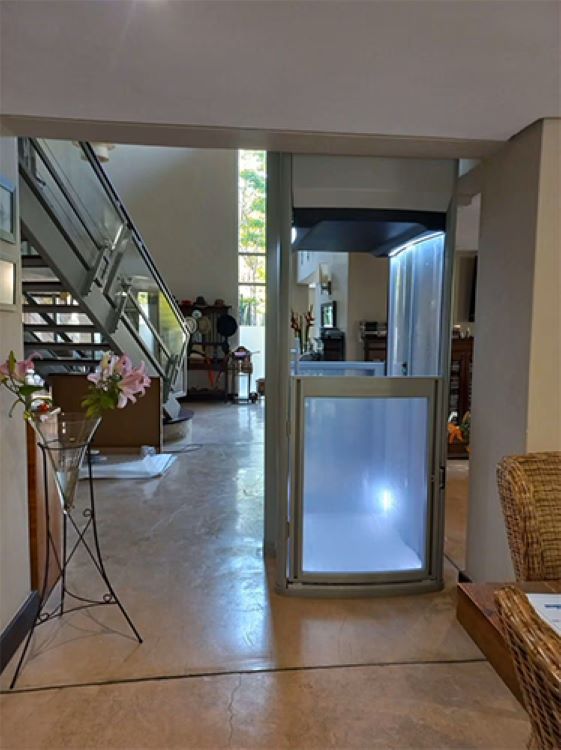

The Trio+ ThruCar

  • An enhanced version of the Trio+, the ThruCar model allows users to enter and exit from opposite sides of the lift. This unique feature makes manoeuvring within the lift easier than ever.
  • The ThruCar uses Stiltz’s unique dual-rail technology, where two doors are configured on either side of the lift car. There’s no other domestic lift on the market that is capable of having a double entry or ThruCar configuration that can also accommodate a wheelchair passenger.

Features:

  • Standard Finishes: The Trio+ is finished in grey
  • Half Height Door: The door is interlocked and is made to match the finish of the lift.
  • 2 x Remote Controls: Call and send the lift remotely and also use it to move heavy or awkward items between floors.
  • One Year Warranty: All Stiltz Lifts carry a comprehensive 12 months parts and labour warranty.
  • Internal LED Downlights: These are programmed to turn on once the user has entered the lift and remain on for the entire journey.
  • Half Height Light Curtain: Comes as standard on all Stiltz home lifts.
  • Battery Back Up System: If there is a power cut while using the lift, it can be driven to the lower level of the home and will then wait until the power comes back on to resume normal service.
  • Power cable: Depending on the nature of each individual installation, the power cable may remain visible while the lift is downstairs.
  • Interior Telephone: In the very unlikely event that the lift stops while you are travelling in it, help is just a phone call away with a phone fitted as standard in all Stiltz home lifts.
  • Wheelchair accessible: Wider entry points and a gently angled ramp make it easier for a standard-sized wheelchair to manoeuvre
  • Whisper Quiet: It’s powered by a quiet electric drive motor, fully contained within the lift’s roofspace, so there are no noisy hydraulics
  • Fast Installation: Lifts are made up of modular sections – standard installs take just one day*.
  • Economical to Use: Plugs into normal 13 amp power socket – like any other household appliance.
  • Unique Dual Rail System: Self-supporting structure – two parallel and vertical guides bear load of the lift.
  • Compact Drive System: Housed at the top of the lift, out of sight – no need for external power packs

Optional Extras:

  • In-Car Seat: This is a popular option selected by customers, the Trio+ has a stylish, moulded perch seat.
  • Interior Grab Rail: Offers increased security for the occupants of the lift.
  • Bespoke Colours & Finishes: Customise your lift by choosing different colour lift car, rails and interior lining.

Safety Features:

  • Half Height Light Curtain: A full-height obstruction sensor is situated at the entrance of our lifts. If this barrier is crossed the lift will immediately stop.
  • Safety Lid Plug: This crucial feature plugs the aperture in the floor when the lift is in the downstairs position. It is strong enough to stand on and you can place your original flooring on top to blend in.
  • Key Switch Operation: This feature allows the owner to isolate the lift if the need arises. This is commonly used when going away on holiday or when the grandchildren are around.
  • Top & Bottom Safety Pans: Using our obstruction sensing covers, a Lift can detect objects above or below the lift, causing it to immediately stop.
  • Hold-To-Run Controls: Operating a Lift requires constant pressure to the controls. This allows the user to ‘drive’ the lift and feel in total control.
  • Weight Limit Sensors: The Trio+ home lift is limited to 250kg | 39st | 551lbs. The lift detects anything exceeding this limit and will not travel.
  • Out Of Balance Sensors: Sensors will detect if the lift is ever out of balance and prevent the unit from travelling.
  • Fall Arrest Mechanism: This patented system prevents the car from falling in the unlikely event of the steel ropes going slack.
  • Emergency Stop Button: This button is front and centre for the user in the event of an emergency.

Technical Specifications:

Home lifts are inherently simple in design and concept but if you wish to dig a little deeper, you can download all the information you need below.

Drive Roped drum, braked gear motor drive
Power Supply 230V AC | 5 amps
Maximum Load Trio+ | 250kg | 39st | 550lbs
Maximum Travel Up to 6 metres
Entrance Security Half-height light curtain / obstruction sensor – optional full height door
Maximum Speed 15cm / Second
Warranty 12 months parts and labour warranty
Compliance European Machinery Directive 2006 / 42 / EC
Rope Diameter 6mm Galvanised steel rope
Additional Sensors Out-of-balance & overload detection and light curtain
Lighting Type 4 x 3w LED downlights
Landing Call Stations 2 Wireless remote control units – call / send facility (3 x standard aaa batteries in each)
Installation Typical installation takes two days
Operation Hold-to-run controls
Configuration Single entry or double entry / Thru-Car
Power Source The homelift is powered via a cable to the power point which is typically positioned downstairs behind the left-hand vertical rail. Consequently, the trailing cable may be visible from behind the lift depending on installation type and location

*Price is for approximate indication purposes only, accurate quote will be provided after a survey.

*Please complete the form below to receive a brochure and no-obligation call, visit and quotation.
